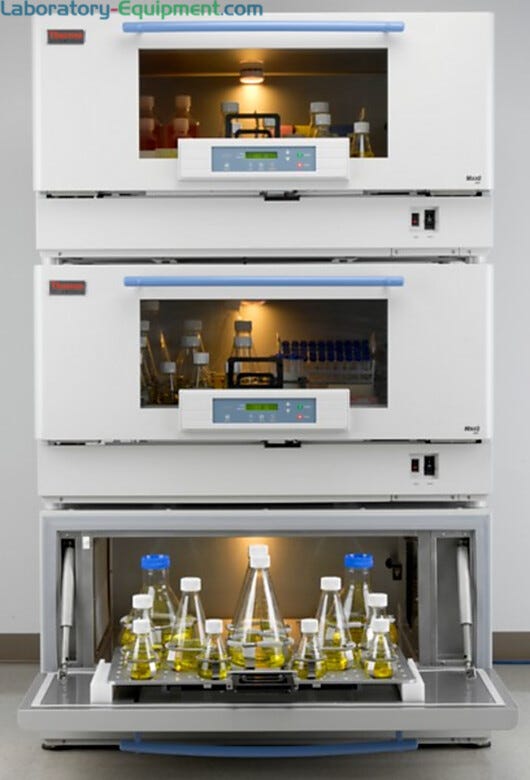

Units perform at top speed and providea three times the capacity of a floor shaker with the same footprint. | 3617-37 displayed

Shakers

MaxQ 8000 Incubated Stackable Orbital Shaker, 10°C above ambient to 60°C ±0.15°C, HEPA Filter, Thermo Fisher Scientific, SHKE8000, 120V

MaxQ 8000 #SHKE8000 Stackable Incubated Orbital Shaker with HEPA Filter maximizes floor space, flexibility and production capability
Provides up to 3 times the capacity of a floor shaker in the same footprint when stacked
Incubated model temperature range and accuracy: 10°C above ambient to 60°C ±0.15°C at 37°C in flask
Ergonomic fold-out door enables operator 100% access to samples, inner chamber accommodates 2L Erlenmeyer flasks, and units stack up to three high without sacrificing performance at top speed
Includes: FREE stacking kit

• Type: Incubated

• Shaking Speed: 25-400 rpm

• Temperature Control: Yes

• Temperature Range: Ambient +10 to 60°C

• Model: MaxQ

• Manufactured by: Thermo Fisher

• Maximum Weight: 71 Pound

• Orbit Diameter: 1 Inch

• Platform Size: 30" x 18"

• Manufacturer SKU: SHKE8000

• Unit of Measure: EA

Manufacturer SKU: SHKE8000

Manufactured By: Thermo Fisher

Warranty: Manufacturer Warranty of Two-Years Labor, Five-Years Parts and 10-Years Drive Mechanism Parts

Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Terra Part # 3617-37

$18,500

Usually ships in 10-20 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part #

MaxQ 8000 Incubated Stackable Orbital Shaker, 10°C above ambient to 60°C ±0.15°C, HEPA Filter, Thermo Fisher Scientific, SHKE8000, 120V

View Shopping Cart View Quote Cart

Product Details

MaxQ 8000 #SHKE8000 Stackable Incubated Orbital Shaker with HEPA Filter maximizes floor space, flexibility and production capability
Provides up to 3 times the capacity of a floor shaker in the same footprint when stacked
• Incubated model temperature range and accuracy: 10°C above ambient to 60°C ±0.15°C at 37°C in flask
Ergonomic fold-out door enables operator 100% access to samples, inner chamber accommodates 2L Erlenmeyer flasks, and units stack up to three high without sacrificing performance at top speed
• Includes: FREE stacking kit

Applications: DNA production, growth of bacteria, yeast and insect cells, protein production, dissolution studies, extractions, hybridizations; sensitive eukaryotic and demanding prokaryotic culture applications

Required accessories (sold separately): universal or dedicated slide out 29.5 × 18 in. platforms, flask clamps, tubes and tube racks

Specifications

Speed range (RPM): 25–400 ±1

Orbit diameter: 1.0" (2.54 cm)

Temperature uniformity: ±0.3°C at 37°C in flask

Maximum platform height (three units stacked): 61" (154.9 cm)

Inner chamber dimensions: 33.4 W x 23.6 D x 11.8 H in.

Maximum load: 71 lbs. (32 kg)

Interior material: 304 stainless steel chamber (crevice-free with coved corners)

Exterior material: heavy-gauge cold-rolled steel

Features:

Forced laminar airflow through HEPA filter rated at 95% efficient at 0.3 microns for entrapment of airborne particles; evenly distributes air within chamber and reduces cross-contamination, improves culturing conditions

Ergonomic insulated fold-down door with magnetic gasket for tight seal and smooth sliding platform for 100% sample access

Built with single-piece chamber, and coved-corners

Flip-down handle/latch on included quick-release base prevents unit from running if platform is not secured

Wide-view window and xenon light provides high visibility of samples

Built-in drain in chamber helps contain spills and promotes easy cleaning

User interface: displays set and actual run conditions, simplifies programming and prevents entry error

Front placement of electronic equipment and HEPA filter enables convenient maintenance without moving or unstacking units

Remote alarm contacts enables convenient monitoring from another location

Rugged construction with no limits on "hard shake" heavy-duty, eccentric drive mechanism with minimal vibrations

Dynamically balanced orbital shaker mechanism optimizes oxygenation and nutrient mixing, reduces cell clumping and prevents splashing and flask wetting

Triple counterbalanced mechanism for optimum handling of full or unbalanced loads

Tight temperature uniformity

Cool-running, brushless, 1/3hp DC motor ensures continuous maintenance-free operation

Microprocessor control/monitoring system: simultaneous display of run and setpoints, tracks total accumulated time, one motor and drive systems, audible/visual over-and under-temperature tracking for product protection, audible/visual, high/low rpm tracking alarms, separate adjustable over-temperature safety alarm with independent probe for additional backup, temporary silencing of alarms and ring back reminder, nonvolatile memory saves settings and automatically restarts after power is restored, RS-232 port, controlled acceleration circuitry for smooth start-up and stopping, easy calibration of functions

Control panel: Backlit two-line, 40-character LCD alphanumeric display of actual (run) and setpoint parameters and alarm condition, icons/buttons for easy programming, time (counts upwards and shows total operating hours/mins. for the run), displays actual platform RPM and speed setpoints, actual temperature inside chamber and temperature setpoints

• Type: Incubated

• Shaking Speed: 25-400 rpm

• Temperature Control: Yes

• Temperature Range: Ambient +10 to 60°C

• Model: MaxQ

• Manufactured by: Thermo Fisher

• Maximum Weight: 71 Pound

• Orbit Diameter: 1 Inch

• Platform Size: 30" x 18"

• Manufacturer SKU: SHKE8000

• Unit of Measure: EA

• Electrical Specifications: 110-240V, 60 Hz

• Weight, Product: 545 lb

• Dimensions, Product: 46.5" W x 33.3" D x 25" H

• Weight, Shipping: 710 lb

• Package Type: Vendor

Manuals & Resources

Shakers

Product Overview of MaxQ 8000 Shakers by Thermo Fisher Scientific
Ergonomic Features of MaxQ 8000 Shakers by Thermo Fisher Scientific
Intuitive Controls of MaxQ 8000 Shakers by Thermo Fisher Scientific
Easy to Use MaxQ 8000 Shakers by Thermo Fisher Scientific
Excellent Sample Visibility with the Thermo Fisher Scientific MaxQ 8000 Shakers
HEPA Protection with the Thermo Fisher Scientific MaxQ 8000 Shakers
Easy Cleaning and Maintenance of the Thermo Fisher Scientific MaxQ 8000 Shaker

Video shows product features of MaxQ 8000 Shakers by Thermo Fisher Scientific Product Overview of MaxQ 8000 Shakers by Thermo Fisher Scientific Features and design elements of MaxQ 8000 Stackable Incubated/Refrigerated Orbital Shakers by Thermo Fisher Scientific

Video shows ergonomic features of MaxQ 8000 Shakers by Thermo Fisher Scientific Ergonomic Features of MaxQ 8000 Shakers by Thermo Fisher Scientific Ergonomic design of MaxQ 8000 Stackable Incubated/Refrigerated Orbital Shakers by Thermo Fisher Scientific feature the slide-out platform, and fold-down door for easy one-handed opening

Intuitive control of MaxQ 8000 Shakers by Thermo Fisher Scientific enables users to easily set parameters Intuitive Controls of MaxQ 8000 Shakers by Thermo Fisher Scientific Backlit two-line, 40-character LCD alphanumeric microprocessor display of MaxQ 8000 Shakers by Thermo Fisher Scientific with keypad and sealed control panel designed for ease of use to users

Convenient stackable design and ergonomic features of MaxQ 8000 Shakers by Thermo Fisher Scientific Easy to Use MaxQ 8000 Shakers by Thermo Fisher Scientific Video of Stackable MaxQ 8000 Shakers by Thermo Fisher Scientific shows the ease of use by operators with full accessibility to samples with the fully sliding platform

Wide-view window display of MaxQ 8000 Stackable Shakers by Thermo Fisher Scientific Excellent Sample Visibility with the Thermo Fisher Scientific MaxQ 8000 Shakers MaxQ 8000 Stackable Incubated/Refrigerated Orbital Shakers by Thermo Fisher Scientific with a wide view window enable operators with a full view of samples

Video details HEPA Protection feature of MaxQ 8000 Shakers by Thermo Fisher Scientific HEPA Protection with the Thermo Fisher Scientific MaxQ 8000 Shakers Easy to replace HEPA filter of MaxQ 8000 Shakers by Thermo Fisher Scientific helps protect samples from cross-contamination of airborne particles

304 stainless steel interior of Thermo Fisher Scientific MaxQ 8000 Shaker is easy to clean and maintain Easy Cleaning and Maintenance of the Thermo Fisher Scientific MaxQ 8000 Shaker Coved corners and crevice-free 304 stainless steel interior of Thermo Fisher Scientific MaxQ 8000 Shakers for easy cleaning and maintenance

Features and Benefits

HEPA Filtration

Ensures that chamber air is clean and prevents cross-contamination; rated at 95% efficient at 0.3 microns for entrapment of airborne particles

Included Stacking Kit

MaxQ 8000 models include a stacking kit with each unit that stacks up to three shakers to increase production; ideal for use in space conscious labs

Slide-Out Platform

Smooth-gliding slide-out platform and ergonomic fold-down door enable operators with convenient 100% access to samples

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

Dedicated Platforms, for 25ml Erlenmeyer Flask, MaxQ 8000 Shaker

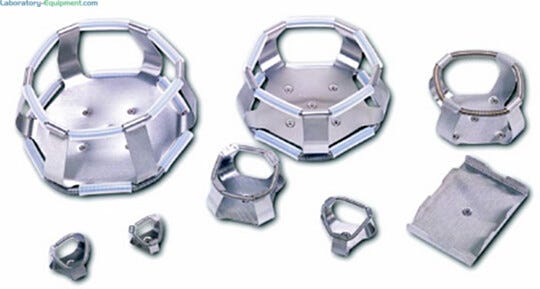

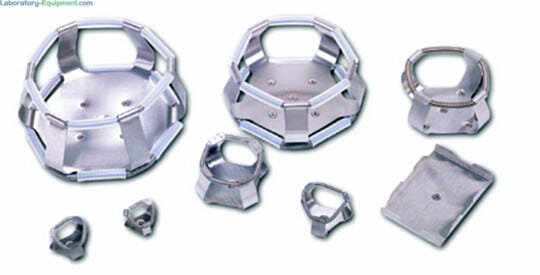

Shakers, Flask Clamp Starter Kit for MaxQ 8000 Shakers
Universal Platforms for MaxQ 8000 Shakers
Shaker; Stackable, Incubated, MaxQ8000, 120V

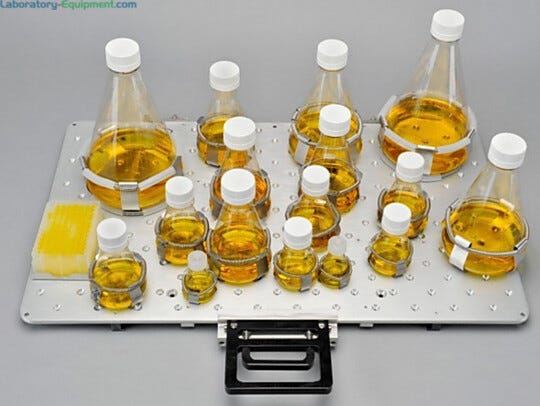

MaxQ 8000 Incubated Shaker Platform

The MaxQ™ 8000 uses interchangeable clamps mounted on platforms to accommodate different vessels (universal platform shown; purchase clamps separately).
Shaker; Stackable, Incubated and Refrigerated, MaxQ8000, 230V

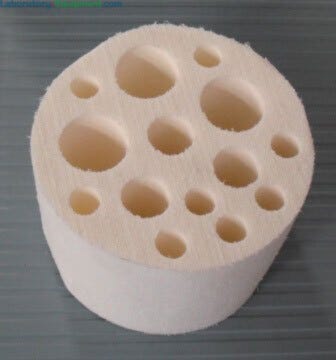

Vial/Tube inserts, Pack of 5, for MaxQ 8000 Shakers
